Tee aluminum extrusions

Extruded aluminum T-bars (aluminum T-bar extrusions, also known as tee extrusion) combine an excellent strong and lightweight structure, corrosion resistance, and machinability. These profiles can be welded, cut, bent, drilled, and tapped, supporting a wide range of processing needs. They are widely used in structural components, shipbuilding, vehicle parts, appliance fittings, electrical connectors, valve elements, and gear components.

At Zhongpeng, we supply a comprehensive range of 6000-series, 6061, 6063, 6060, 6082, and 2024 aluminum T-bars, available in custom lengths and with anodized or painted finishes, ensuring durability and precision across architectural and industrial applications.

Request a Quote
Available Sizes

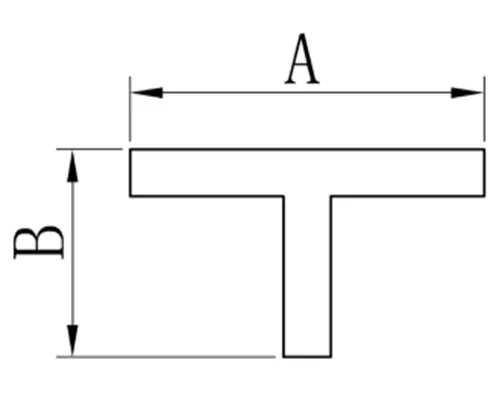

Product No. Side A (mm) Side B (mm) Thickness (mm) Weight
(kg/m)		 Extrusion Press Capacity Alloy & Temper
ZWCT-34 14 5 A=2.5/B=7.5 0.538 500T 6063-T5
SYSZ-31 10.4 8.05 2 0.088 500T 6063-T5
ZW_D030744 15 15 2 0.151 500T 6060 T66
ZW_D055020 15 15 1.5 0.115 500T 6060-T66
ZW_D010083 30 15 2 0.232 500T 6060-T66
ZWGYC-4314 10.8 15.6 A=1.2/B=4.8 0.220 500T 6063-T5
ZW_D031016 20 20 2 0.205 500T 6060-T66
ZW_D030360 25 25 2 0.259 500 6060-T66
ZW_D030745 25 25 3 0.381 660T 6060 T66
ZW_D031467 25 25 1.6 0.209 500T 6063-T6
ZW_D010866 40 25 2 0.340 660T 6060-T66
ZW_D061169 40 25 3 0.502 660T 6060-T66
ZW_D031919 25.4 25.4 0.9 0.121 500T 6063-T5
ZW_D011870 25.4 25.4 3.18 0.408 660T 6063-T6
ZW_D011875 50.8 25.4 3.18 0.626 880T 6063-T6
ZW_D030746 30 30 2 0.313 660T 6060-T66
ZW_D070629 30 30 3 0.462 660T 6060-T66
ZW_D030899 50 30 3 0.634 880T 6060-T66
ZW_D061170 50 30 4 0.821 880T 6060-T66
ZW_D031017 60 30 4 0.929 880T 6060-T66
ZWYF-12 50 32 3.2 0.692 880T 2024-T3
ZW_D030748 35 35 3 0.543 660T 6060-T66
ZW_D060563 35 35 2 0.367 660T 6060-T66
ZW_D080599 38.1 38.1 6.35 1.198 1250T 6082-T6
See Details
Material Selection Guide
Alloy Key Properties Typical Applications
6060 / 6063Aluminum T-bar Corrosion resistance, smooth surface finish, easy to process, suitable for anodizing Architectural structures, appliance fittings, decorative T-bars
6061 / 6082 Aluminum T-bar High strength, corrosion resistance, machinability, easy to weld Vehicle components, marine structures, electrical connectors, valve parts
2024Aluminum T-bar High strength, fatigue resistance Heavy-load mechanical parts, aerospace structures
One-Stop Aluminum Manufacturing

Since 1993, Zhongpeng has been a trusted aluminum manufacturer serving a wide range of industries. We deliver durable aluminum extrusions, aluminum coils and sheets, and custom aluminum components to meet the specific requirements of customers across industrial, construction, automotive, rail, electronics and solar sectors.

Related Aluminum Products View all

In addition to standard aluminum extrusions and flat-rolled products, we also supply custom aluminum extrusions and custom fabricated aluminum components tailored to your specifications and industry requirements.

    1. Custom Aluminum Extrusions
    2. Custom Aluminum Extrusions Zhongpeng has established an experienced design team of over 100 professionals, proficient in CATIA, SolidWorks, UG, ABAQUS, and other design and simulation software. Learn more
    1. Custom Fabricated Aluminum Components
    2. Custom Fabricated Aluminum Components The facility operates over 100 welding machines and 60 machining units, supplying major components to CRRC China, Hyundai Korea, Dawonsys rail manufacturers, and automotive OEMs such as Tesla, BMW, and Chery. Learn more

For vehicle components, 6061 or 6082 aluminum T-bars are ideal choices. These alloys provide high strength, corrosion resistance, and weldability, making them suitable for frames, reinforcements, and other load-bearing structures.

The 2024 aluminum alloy T-bar offers strength and fatigue resistance, ideal for marine and structural applications. Profiles can also be customized through cutting, welding, and surface finishing to meet specific performance requirements.
